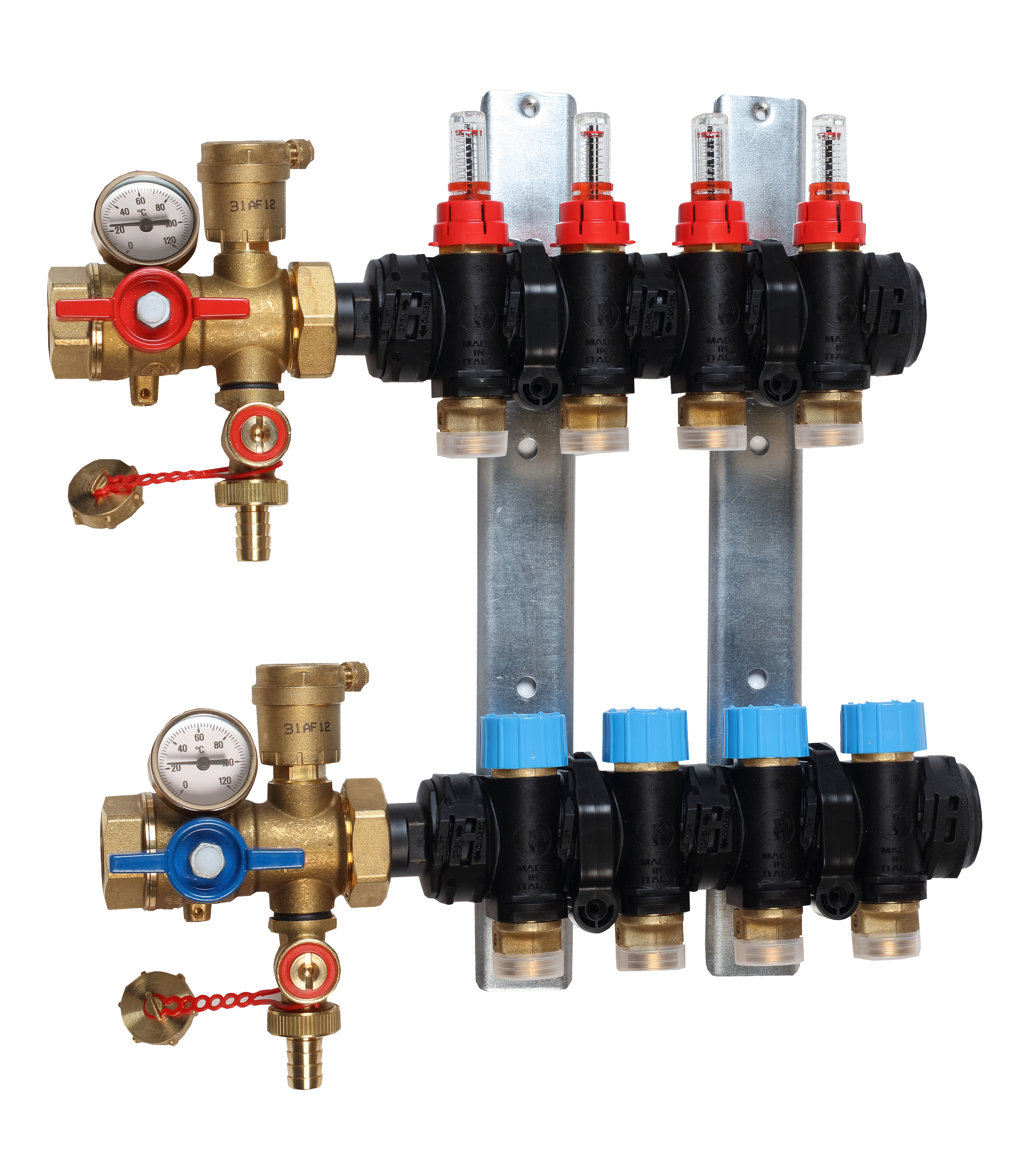

Preassembled technopolymer modular manifold for HVAC systems.
The kit includes:
- supply manifold with flow meters (dual scale: 0÷5l/min and 0÷1,5 GPM) with fluid adjustment/shut-off function;
- 1 return manifold with shut-off valves with manual handwheel (connection M30 x 1,5 mm), pre-arranged for thermo-electric command via R473/R473M actuators that can be installed after fitting the relative ring nut R453FY002 (included with the kit) on the module, eccentric fittings to allow easy installation both with piping entry from the left and from the right;
- 2 multi-function valves R269T (supply and return);
- brackets R588FP.
Outlets with Eurocone adaptor connections.
Temperature range: 5÷60 °C
Max. working pressure: 6 bar
Optional
- R500-1, R500-2: flush-mount metal cabinets, with adjustable depth.
- R473, R473M: normally closed thermo-electric actuators.
- R73FPY001: pair of spanners for removing the manifold modules.
- R178E, R179E: 3/4”E adaptors.
Spare parts
- R588FPY001: metal bracket with supports.
- R453FY002: plastic ring nut M30 x 1,5 mm for installing the thermo-electric actuators.
- P553FPY011: supply module with flow meter with dual scale 0÷5 l/min and 0÷1,5 GPM and 3/4”E outlet.
- P553FPY012: return module with valve and 3/4”E outlet.
- P553FPY005: cap module.
- P553FPY006: inlet module (without nut).
- P553FPDB030: kit composed of supply module + return module with 3/4”E outlets.
- P583Y004: nut and gasket for inlet module.
| Code | Size |  |
 |
BIM(revit) | CAD(dxf) | Certification |
|---|---|---|---|---|---|---|
| R553FP302 | G 1" x 3/4"E /2 | 1 | 0 | - | - | |
| R553FP303 | G 1" x 3/4"E /3 | 1 | 0 | - | - | |
| R553FP304 | G 1" x 3/4"E /4 | 1 | 0 | - | - | |
| R553FP305 | G 1" x 3/4"E /5 | 1 | 0 | - | - | |
| R553FP306 | G 1" x 3/4"E /6 | 1 | 0 | - | - | |
| R553FP307 | G 1" x 3/4"E /7 | 1 | 0 | - | - | |
| R553FP308 | G 1" x 3/4"E /8 | 1 | 0 | - | - | |
| R553FP309 | G 1" x 3/4"E /9 | 1 | 0 | - | - | |
| R553FP310 | G 1" x 3/4"E /10 | 1 | 0 | - | - | |
| R553FP311 | G 1" x 3/4"E /11 | 1 | 0 | - | - | |
| R553FP312 | G 1" x 3/4"E /12 | 1 | 0 | - | - |
