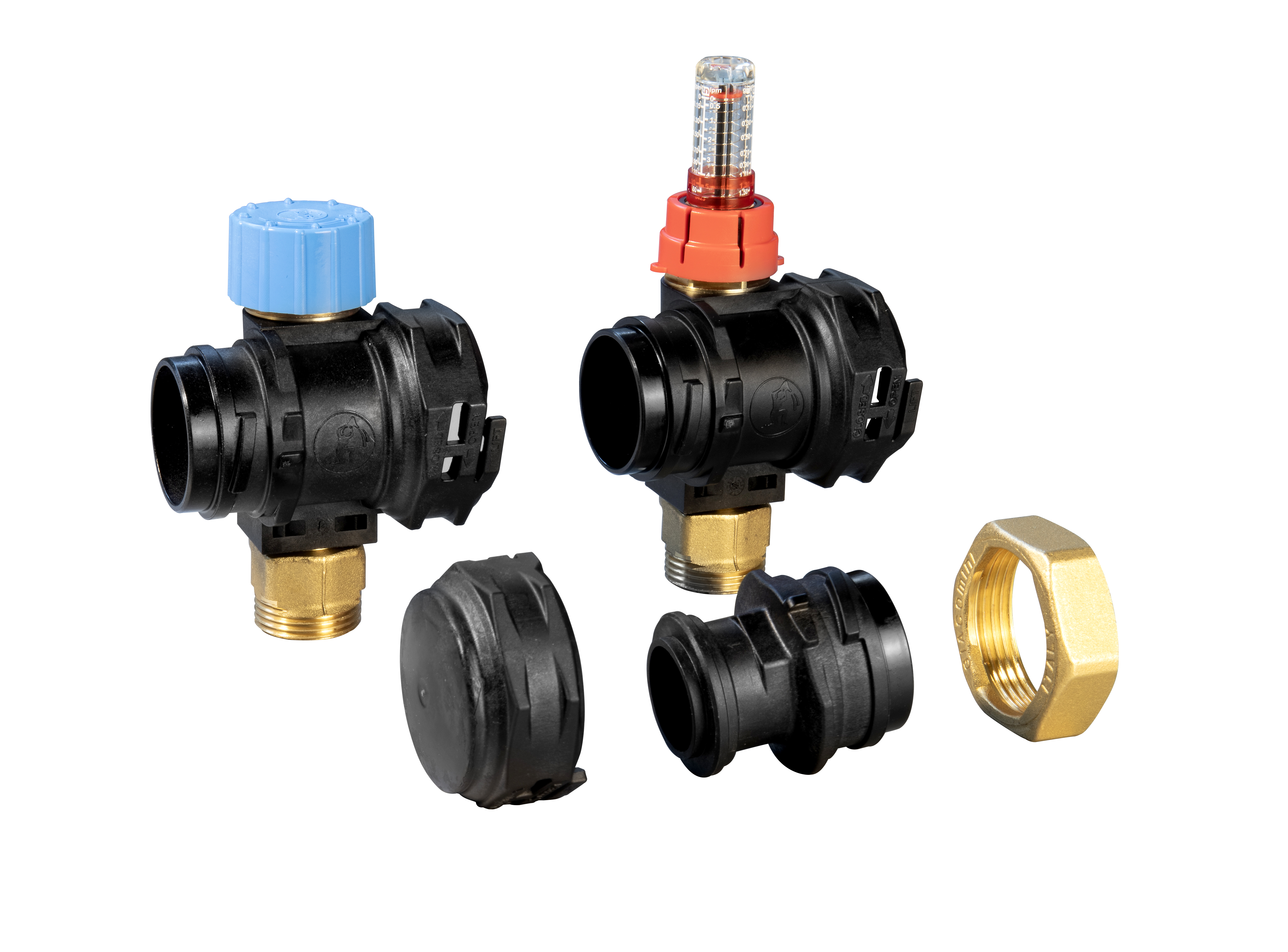

Spare parts for R553FP and R553FPDB manifolds.
- P553FPY006: inlet module (without nut).
- P583Y004: nut and gasket for inlet module.
- P553FPY005: cap module.
- P553FPY011: supply module with flow meter with dual scale 0÷5 l/min and 0÷1,5 GPM and 3/4”E outlet.
- P553FPY017: supply module with flow meter with scale 0÷2,5 l/min and 3/4”E outlet.
- P553FPY012: return module with valve and 3/4”E outlet.
- P553FPDB011: return module with dynamic Low Flow balancing bonnet and 3/4”E outlet.
- P553FPDB012: return module with dynamic High Flow balancing bonnet and 3/4”E outlet.
- P553FPY030: kit composed of supply module + return module with 3/4”E outlets.
- P553FPDB030: kit composed of supply module with flow meter with scale 0÷2,5 l/min + return module with dynamic Low Flow balancing bonnet and 3/4”E outlets.
- P553FPDB031: kit composed of supply module with flow meter with dual scale 0÷5 l/min and 0÷1,5 GPM + return module with dynamic High Flow balancing bonnet and 3/4”E outlets.
| Code | Size |  |
 |
BIM(revit) | CAD(dxf) | Certification |
|---|---|---|---|---|---|---|
| P553FPY006 | DN32 | 1 | 0 | - | - | |
| P583Y004 | Nut and gasket | 1 | 0 | - | - | |
| P553FPY005 | DN32 | 1 | 0 | - | - | |
| P553FPY011 | DN32 x 3/4"E | 1 | 20 | - | - | |
| P553FPY017 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPY012 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPDB011 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPDB012 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPY030 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPDB030 | DN32 x 3/4"E | 1 | 0 | - | - | |
| P553FPDB031 | DN32 x 3/4"E | 1 | 0 | - | - |
